Description

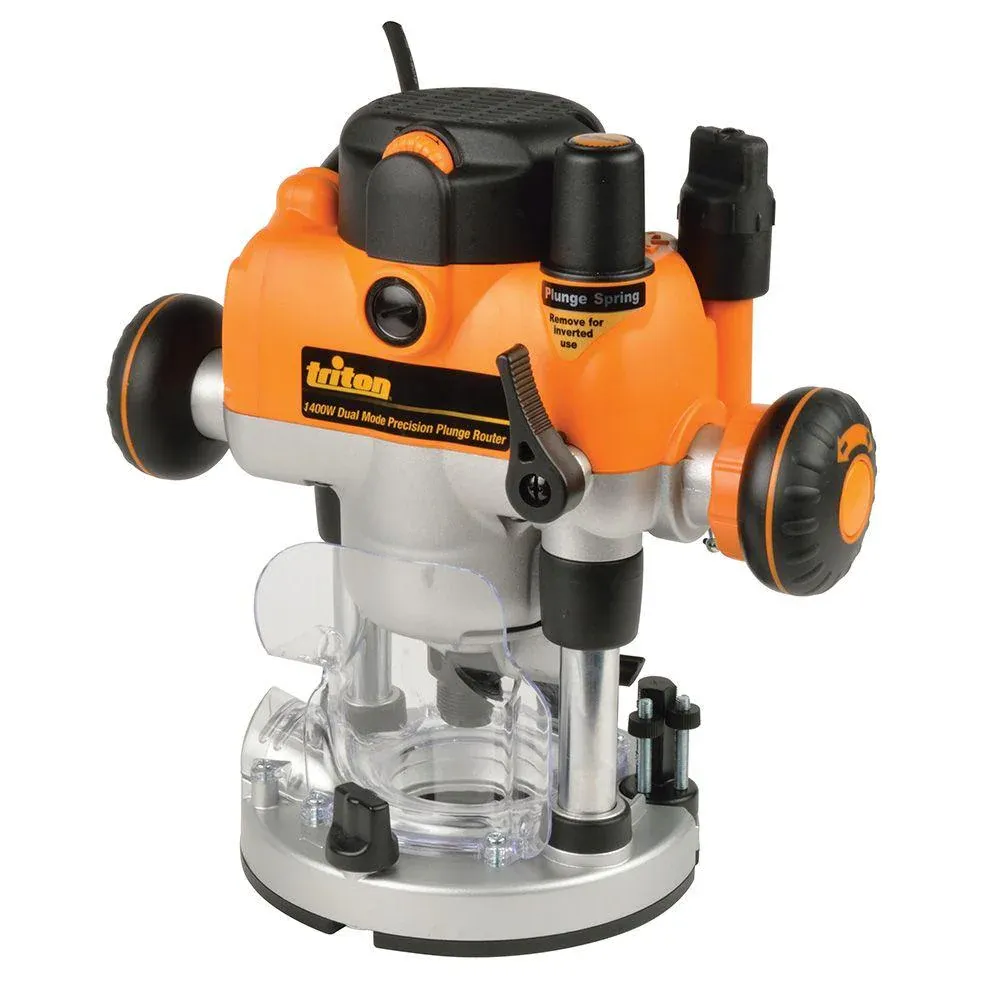

Triton, MOF001 2 1/4 HP Plunge Router 11001
Key Features:
- Powerful Motor: The 2 1/4 HP motor delivers robust power, capable of handling a variety of routing tasks with ease.
- Dual Mode: Easily switches between plunge and fixed-base routing, offering flexibility for different applications.
- Micro Winder: Provides continuous fine depth adjustment through the full plunge range for precise and accurate routing.
- Single Spanner ‘Above Table’ Height Adjustment: Allows for easy and accurate bit height adjustments from above the table, enhancing convenience and efficiency.
- Soft Start and Variable Speed: Soft start reduces start-up torque for better control, while variable speed control allows for adjusting the speed to match the material and application.
- Automatic Spindle Lock: Engages only when the power switch is off, ensuring safety and making bit changes easy with a single wrench.
- Safety Features: Includes a safety switch shutter to prevent accidental operation, enhancing user safety.
- Built-In Work Light: Illuminates the work area for better visibility and accuracy.
Benefits:
- Precision and Control: Offers precise depth adjustments and stable control for detailed and intricate routing tasks.
- Versatility: Dual-mode design and wide range of adjustments make it suitable for various woodworking projects, from edge trimming to deep plunging.
- Ease of Use: Features like above-table height adjustment and automatic spindle lock make the router user-friendly and efficient.
- Safety: Multiple safety features protect the user and enhance the overall reliability of the tool.
Applications:
- Cabinet making
- Furniture construction
- Joinery
- Custom woodworking projects
- Edge trimming
- Dado cuts
- Template routing
Specifications:
- Motor Power: 2 1/4 HP
- Variable Speed: 8,000 – 21,000 RPM
- Plunge Range: 0 – 59mm (0 – 2 5/16 inches)
- Collet Size: 1/2 inch and 1/4 inch
- Weight: Approximately 13 pounds (5.9 kg)
Overall, the Triton MOF001 2 1/4 HP Plunge Router is a high-performance tool that offers power, precision, and versatility for a wide range of woodworking tasks. Its ergonomic design, variable speed control, and dual-mode capability make it an excellent choice for both professional woodworkers and serious DIY enthusiasts.
Features:
- Award-winning router with compact and powerful 1400W / 2-1/4hp motor and 8000-21,000rpm electronic speed maintenance under load.
- Quick-fit pins located in base for rapid fitment to mounting plate.
- Compatible with the Triton RTA300 router table. Easy-set, direct reading 3-stage turret for precise pre-set cut depths.
- Single dial switch from plunge to fixed-base router with rack and pinion height adjustment.
- 1/4″ and 1/2″ collet for a greater range of bit fitment
- 1400W / 2-1/4hp motor for maintained speed under load
- Automatic spindle lock engages only when power switch cover is closed
- Soft start and variable speed for all cutter types
- Micro winder enables continuous fine depth adjustment through the full plunge range
- Rack and pinion height adjustment and table winder eliminates the need for expensive lifting mechanisms when used with router tables
- Electronic speed control ensures a fine finish on all materials
- Removable plunge spring for easy bit adjustment when table mounted
- 3-stage turret with direct reading scales for precise pre-set cut depths
- Fully enclosed guarding provides maximum protection from the cut zone and assists dust extraction
- Multi-function fence provides optimum control for hand-held use and circle cutting
- Quick-fit pins for fast fitment and removal from the fence and the RTA300 Router Table
- Side air vents reduce intake of dust into the motor casing when mounted upside-down in a router table
- Excellent dust extraction for a cleaner, safer working environment
- Easy access brushes for quick changes
- Through the base single-wrench bit change is achieved with the automatic spindle lock
- Safety switch shutter locks closed in bit-change mode to prevent router being switched on
