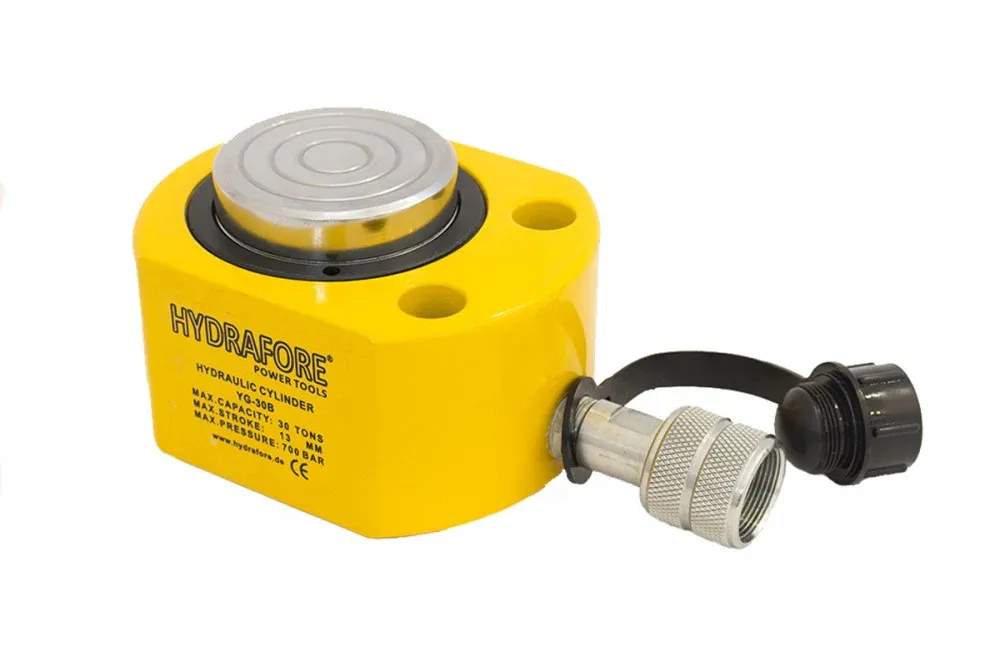

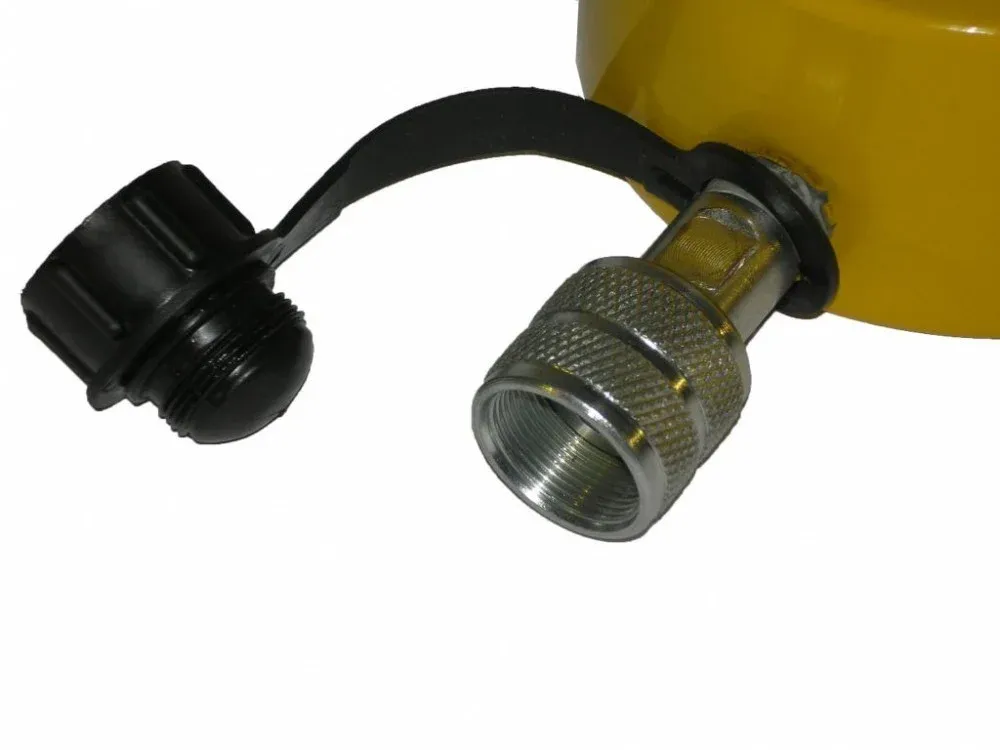

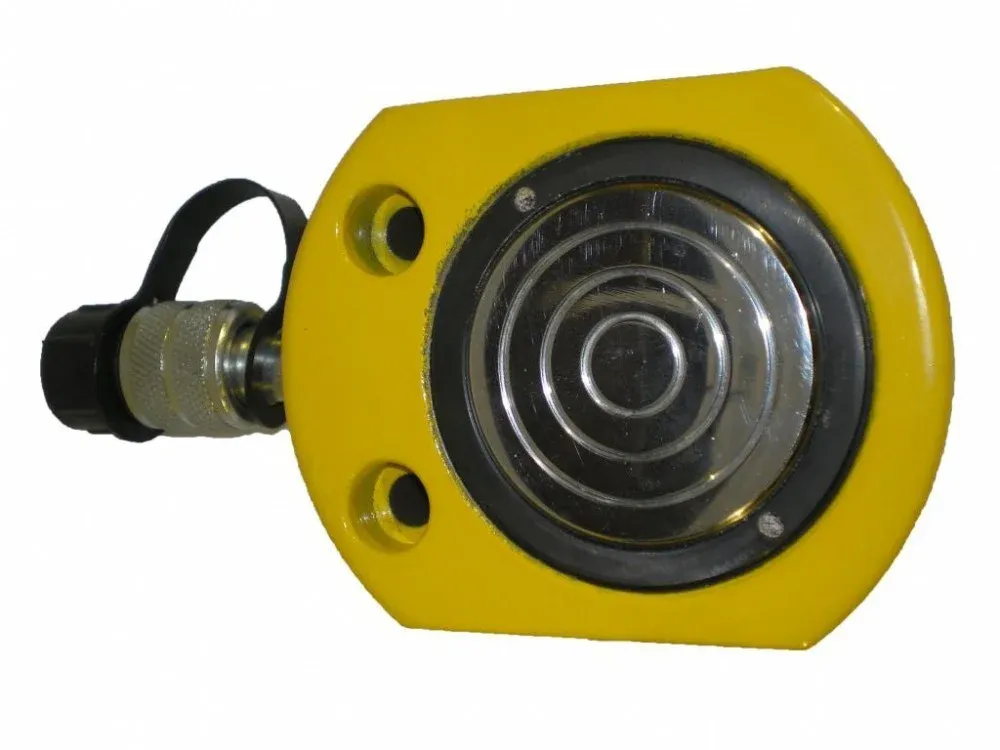

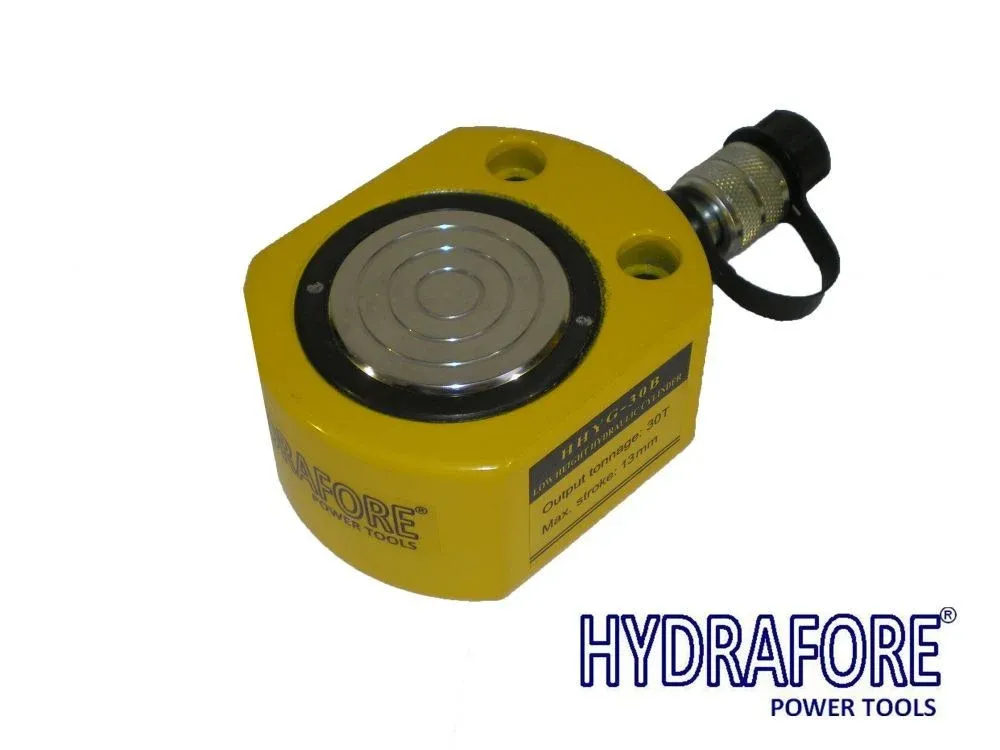

Hydraulic Low Height Cylinders (30tons – 0.5″) (YG-30B)

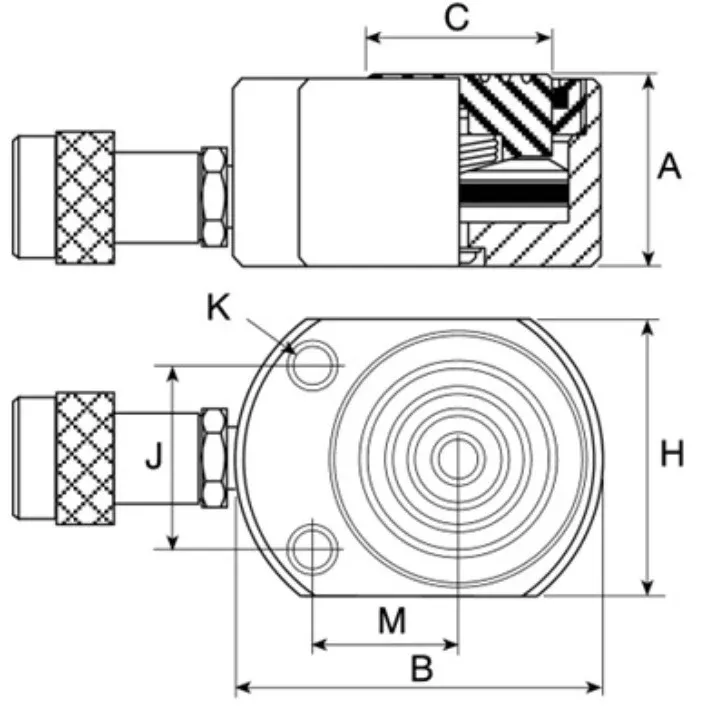

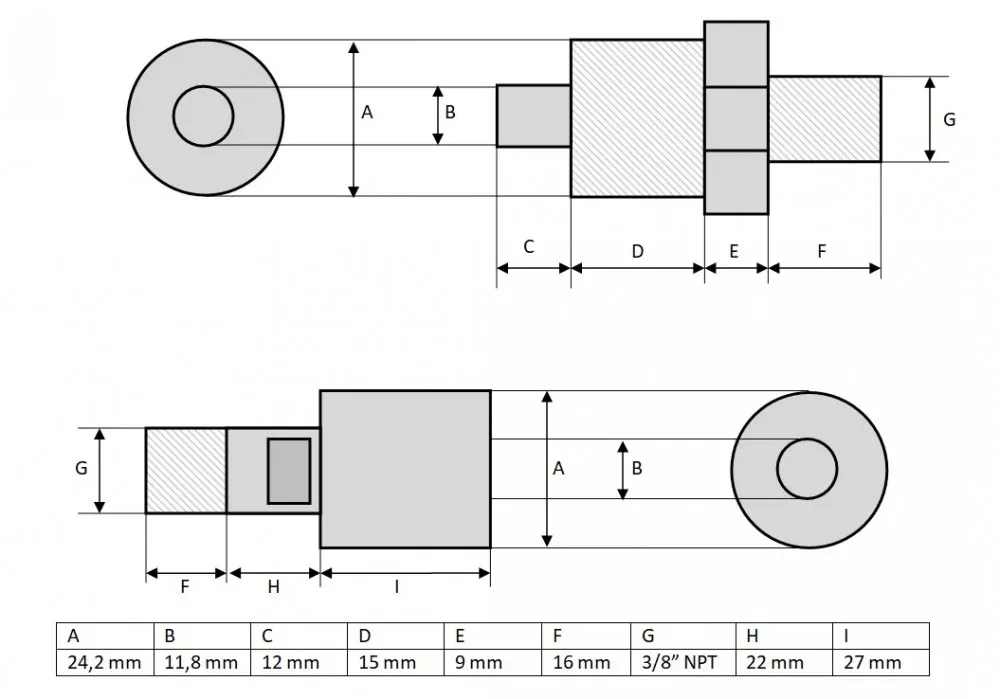

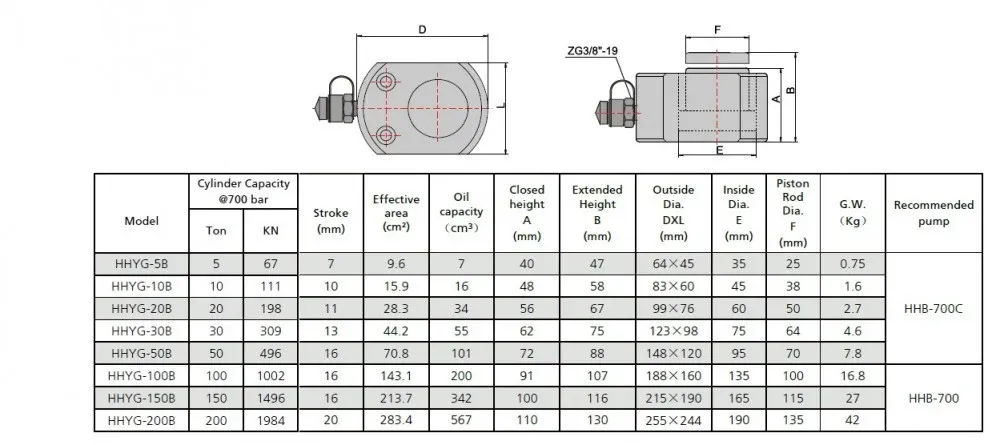

YG-10B:
A = 1.88 in
B = 3.27 in
C = 1.48 in
J = 1.49 in
H = 2.36 in
K = 0:28 in
M = 1.38 in

YG-20B:
A = 2.19 in
B = 3.89 in
C = 1.96 in
J = 1.93 in
H = 3.01 in
K = 0:37 in
M = 1:52 in

YG-30B:
A = 2.43 in
B = 4.86 in
C = 2.52 in
J = 2.09 in
H = 98.3 in
K = 0:39 in
M = 1.83 in

YG-50B:
A = 2.83 in
B = 5.83 in
C = 2.76 in
J = 2.91 in
H = 4.72 in
K = 0:43 in
M = 2.32 in

YG-100B:
A = 3.59 in
B = 7.48 in
C = 3.94 in
J = 3.66 in
H = 6.30 in
K = 0:51 in
M = 3.03 in

YG-150B:
A = 3.94 in
B = 8.66 in
C = 4:53 in
J = 4:13 in
H = 7.48 in
K = 0:51 in
M = 3.54 in

YG-200B:
A = 4:33 in
B = 10:40 in
C = 5.31 in
J = 5.91 in
H = 0.96 in
K = 0:51 in
M = 3.74 in
