Description
HYDRAFORE YG-200100LS

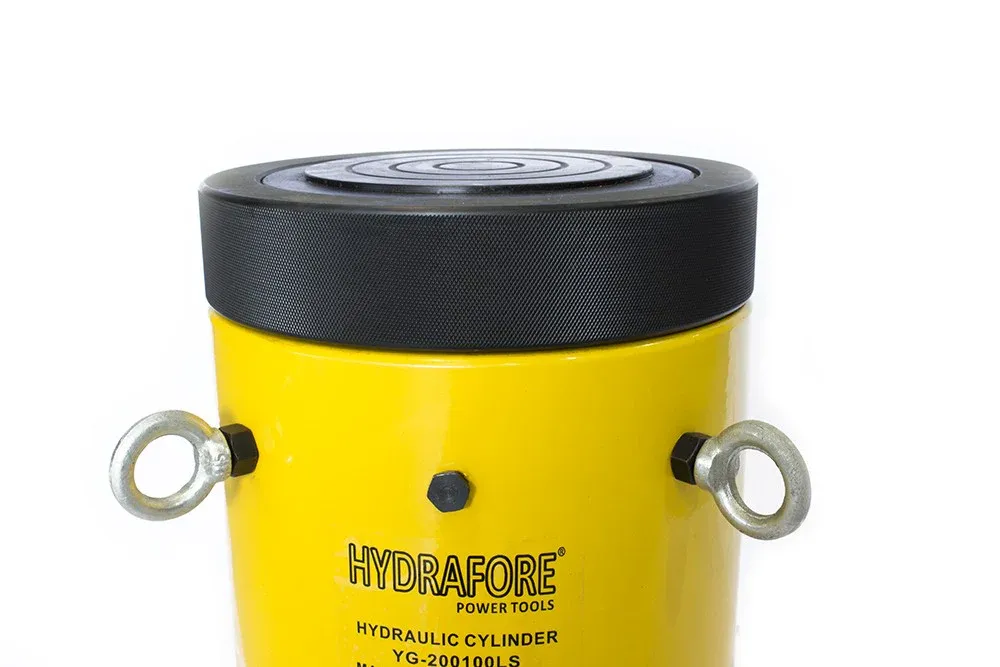

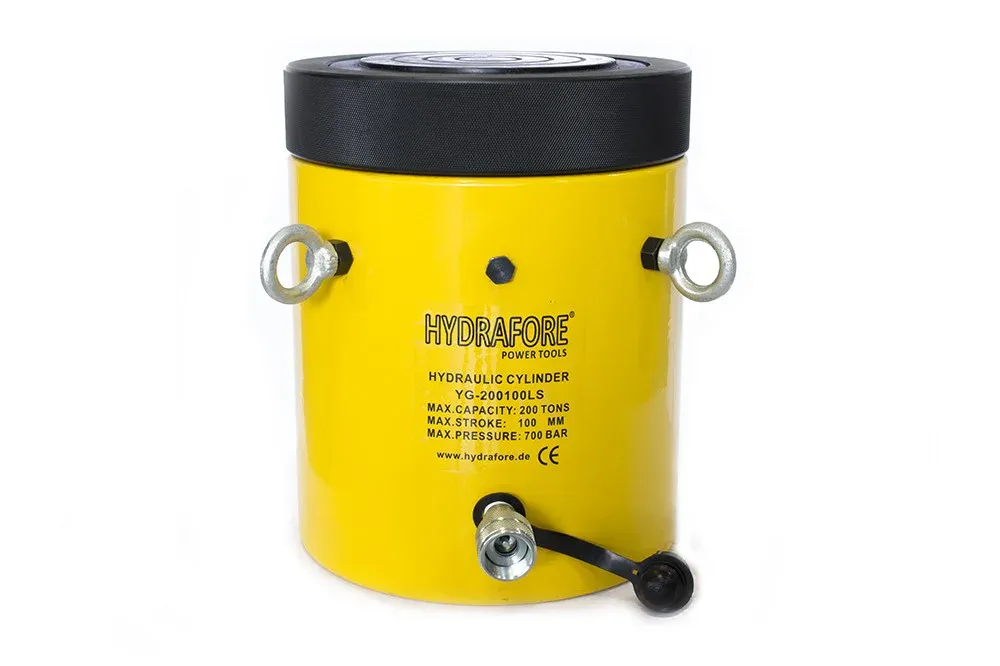

Single-acting Cylinder with Lock nut
Attention!
This item does not qualify for free shipping.
Please contact us for shipping quotes.
To secure loads mechanically
Mechanical lock to support load. Overflow port prevents piston from being overextended.
Single-acting, Lock Nut Cylinders
Working pressure: 700bar / 10000psi.
- Safety lock nut for mechanical load holding.
- Sing-acting, 10-200 ton cylinder models are spring. return, 250-1000 ton cylinder models are
- load return.
- Overflow port functions as a stroke limiter.
- High strength alloy steel for durability.
- Chrome plated piston resists wear and corrosion.
- Baked enamel finish for increased corrosion resistance.

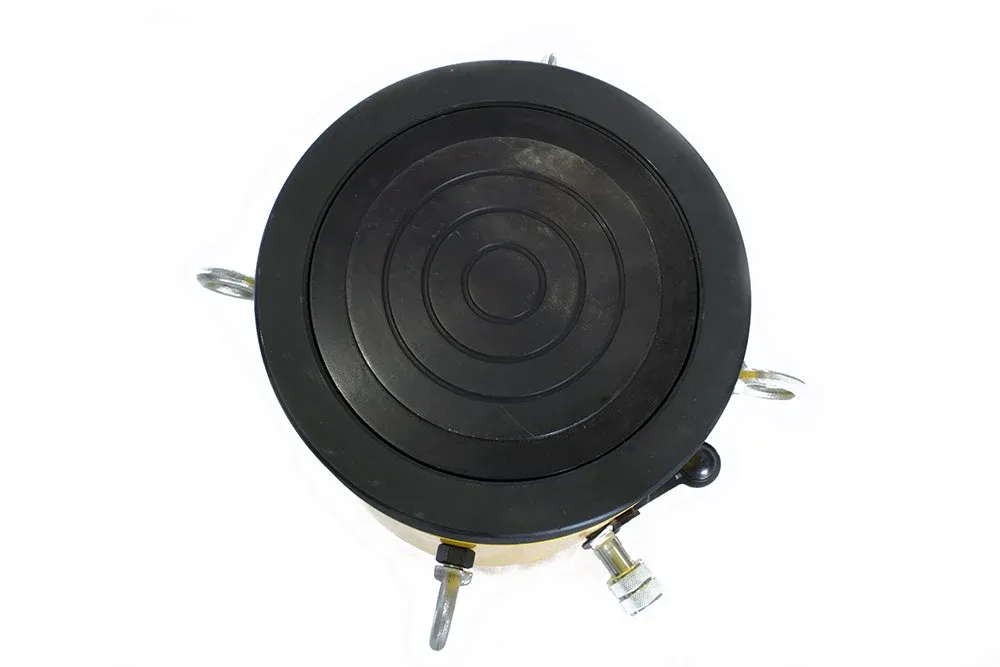

- Each cylinder has a flat grooved saddle. Tilt saddle is available on request.
| Technical parameters: | |
| Model: | YG-200100LS |
| Tonnage: | 200 T |
| Stroke: | 3.93 in |
| Oil capacity: | 180.32 in3 |
| Closed height: | 11.5 in |
| Extended height: | 15.5 in |
| Outside diameter: | 9.37 in |
| Inside diameter: | 7.5 in |
| Piston diameter: | 7.5 in |
| Recommended pump: | B-7000 |
| Weight: | 218.0 lbs |
